HyEndFed 8 band antenna for 80, 40, 20, 17meter.
An tuner will be required only on 30 meters.
With aluminum mounting plate, suitable for a mast diameter of 40 to 58 mm.
Max. Power : 2000 Watt PEP, SSB.
Length : 40 meter.
Enclosure : Polycarbonate IP67, 100% UV resistant.
SO239 Teflon Connector.
All hardware Stainless steel. Mast clamp galvanized steel with Stainless steel nuts.

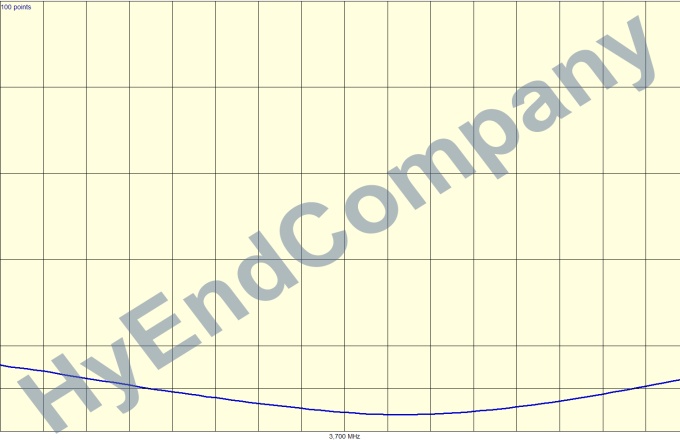

These VSWR measurements were taken in the open field at a height of 10 meters horizontally.
We use 4.5 meter of coax to a line isolator.
From the line isolator to the analyzer we used 15 meters of coax Ecoflex 10
The antenna network box was positioned 6 meter above the ground.
The length of the antenna wire to the matching network is 40 meters and connected to an 12 meter mast.
The antenna was not grounded.
Used VSWR meter : RigExpert AA-600
