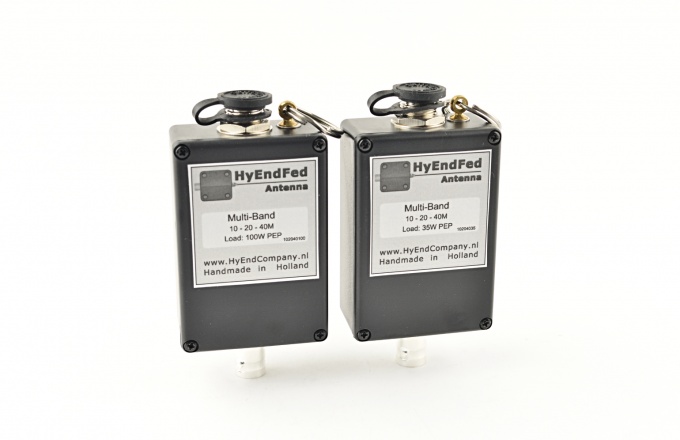

Portable 3 Band Antenna Mini 35 Watt

HyEndFed 3 band for 40, 20 and 10 meter.
Max. Power : 35 WATT SSB, 6 WATT DIGITAL.
Length : 11.80 meter.
Enclosure : ABS IP65
BNC Connector.
All hardware Stainless steel.
No radials or tuner needed.

All measurements for this antenna were taken in an open field.
We used 10 meter of coax from the analyzer to the Matching Network box which is also positioned 1 meter above the ground.
The length of the antenna wire to the matching network is 11,8 meters and connected to a 8 meter mast at the top like a sloper.
