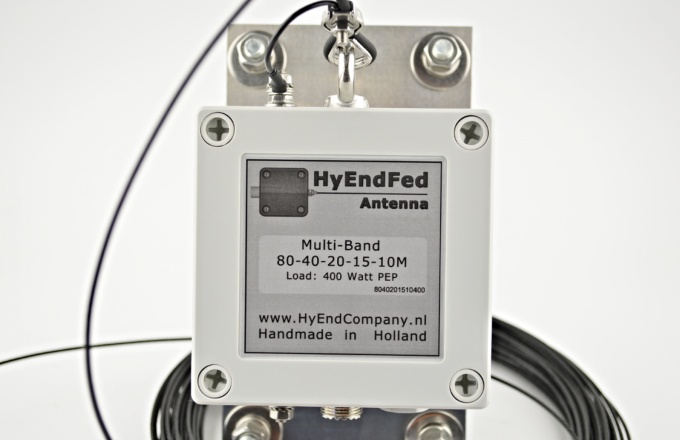

HyEndFed 5 Band 400 Watt AL Plate


$ 263.20



HyEndFed 5 band for 80/40/20/15/10 Meter.


Max. Power : 400 watt PEP, SSB.

75 Watt Digital.


Length : 23 meter.

Bandwidth 70 KHz at 80 meters.


Enclosure : Polycarbonate IP67, 100% UV resistant.
SO239 Connector Teflon.
All hardware Stainless steel.
No radials or tuner needed.



By shortening the piece of wire at the far end.
Can you tune the 80 meter band to your favorite frequency.



These VSWR measurements were taken in the open field at a height of 10 meters horizontally.

We use 4.5 meter of coax to a line isolator.
From the line isolator to the analyzer we used 10 meters of coax Ecoflex 10, with very little loss.



Coax loss Ecoflex 10 :

5 MHz 0,8 dB/100m

10 MHz 1,2 dB/100m

50 MHz 2,8 dB/100m




The antenna network box was positioned 6 meter above the ground.
The length of the antenna wire to the matching network is 23 meters and connected to an 6 meter mast.

The antenna was not grounded.


Used VSWR meter : RigExpert AA-600

Make a choice
Connector
Mast Clamp
Type Strain relief


Reviews

Name: Rene VA2RB City: Orford, Quebec Canada 04 augustus 2024 Time: 04:50:59

I installed my antenna (5 bands 400W) on July 29, 2024. It is worth mentioning the speed of shipping from the Hyendfed team. Very fast. I have almost always operated with a Hygain TH3MK3 in a 72 foot tower. However, at my new residence, impossible. So I had doubts about this antenna but the comments were good. Well, after 5 days, I must say that it is performing very well. No comparison with my old installation but for an endfed, it's super effective even in bad conditions. I receive good comments. the SWR is good and especially on the 20m which is my favorite band. The antenna is very well built. I have a little difficulty over 10m but I couldn't follow the installation advice 100%. By the way, I communicated with Ron from Hyendfed and the feedback was quick and professional. Buy! VA2RB
